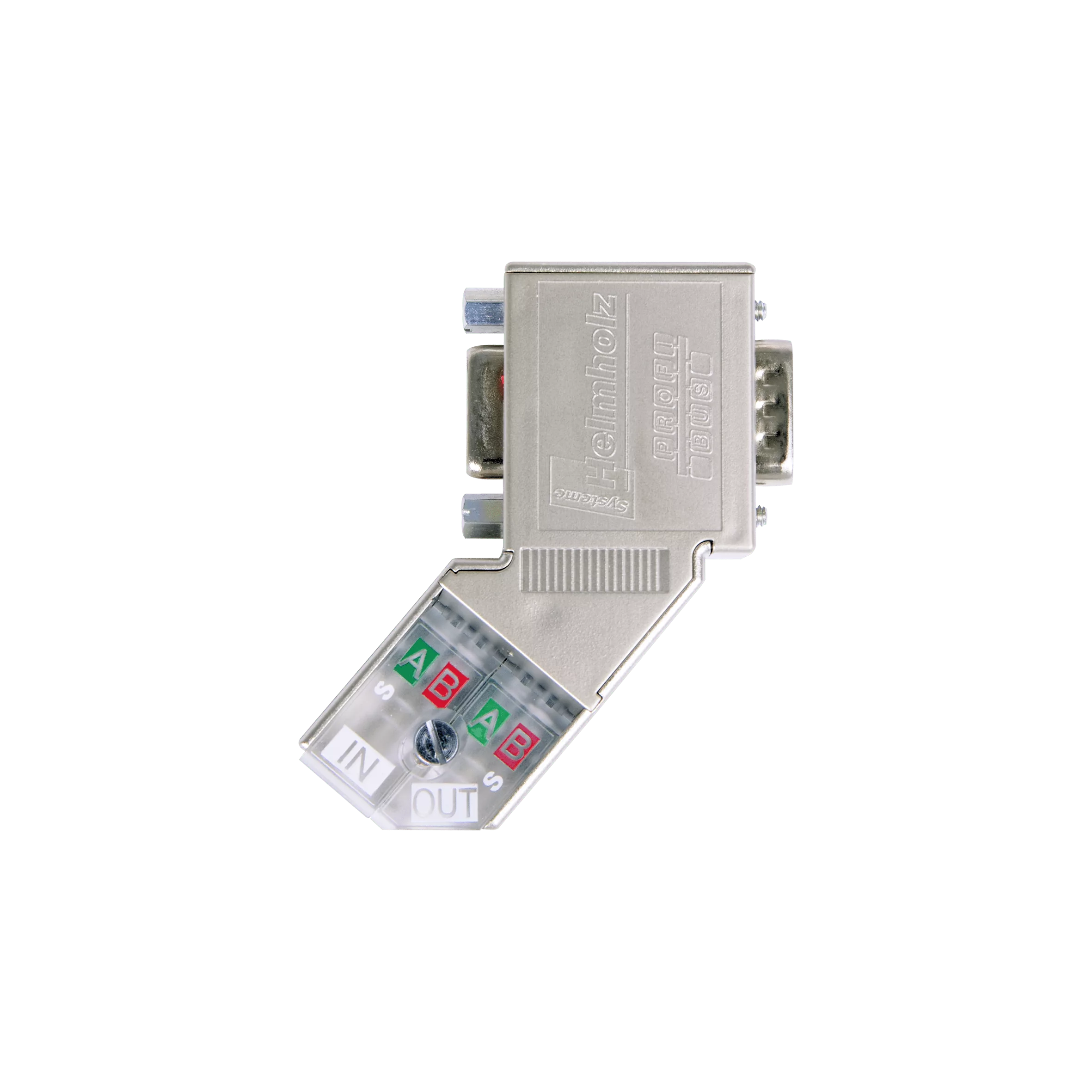

PROFIBUS connector, angled, EasyConnect?
PROFIBUS connector, angled, EasyConnect?
With the aid of a visual connection control, it is also possible to check that the PROFIBUS cable is correctly connected after it is mounted. The housing is metalized for improved electromagnetic compatibility. The EasyConnect? connector works in the extended ambient temperature range of -25 ?C to +85 ?C. Additional participants can be connected via the integrated PG interface.
- Metalized housing
- No parts that can be lost
- Integrated switchable terminating resistor
- Angled cable outlet
- Quick-connect technology EasyConnect®
- Visual connection control
- The PROFIBUS connectors are also available in packs of 10 or 50
- The maximum ambient temperature for UL is +60 °C
- Optional integrated PG interface
- for use with solid cable
| Cable outlet | Angled cable outlet | ||
| PROFIBUS interface | |||
| Transmission rate | max. 12 Mbps | ||
| Connection | SUB-D, 9 pin | ||
| Terminating resistor | Resistor combination integrated and switchable using slide switch | ||
| PG connection socket | SUB-D, 9-pin | ||
| PROFIBUS bus cable | FC standard cable, solid | 0.64 mm Ø, 60/75 °C copper cable | |
| Connector type | EasyConnect® | ||
| Maximum outside diameter | 8.0 mm | ||
| Voltage supply | +4.75 … +5.25 V DC (must come from the device) | ||
| Current draw | Max. 12.5 mA |
Description |
Order number |
| PROFIBUS connector, angled, EasyConnect® without PG, for solid cables | 700-972-0BA51 - No longer available - successor: 700-972-0BB51 |
| PROFIBUS connector, angled, EasyConnect® with PG, for solid cables | 700-972-0BB51 - No longer available - successor: 700-972-0BB50 |
