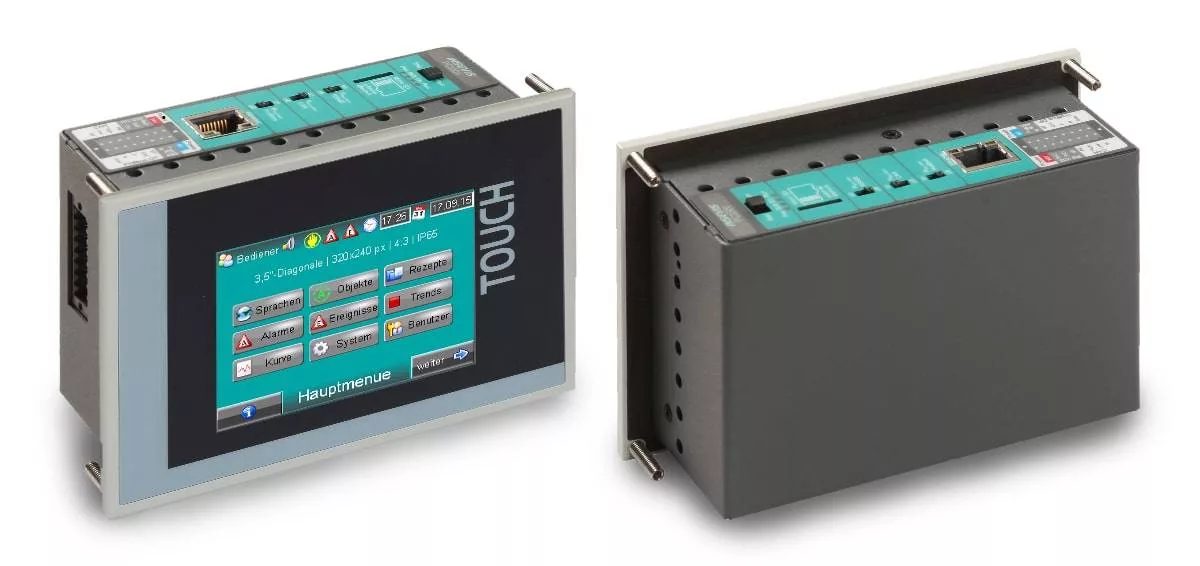

3,5″ – S7-Panel-PLC – flat / no periphery slots onboard
3,5″ – S7-Panel-PLC – flat / no periphery slots onboard
There you have to look twice: Touch panel and S7-PLC with enormous power data, combined in an extreme compact device. Decentral and external periphery will be used by onboard interfaces. Often used as economy model or as additional operator panel or to control in the S7-control network. Beside of the large working memory (512/640kB) the lots of onboard interfaces Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) favor this device for a data logger or gateway application with data preprocessing with S7.
- Program system - SIMATIC® Manager/ TIA Portal from SIEMENS or compatible products
- IP-protection class: front panel IP65 and rear side IP41
- Operating temperature: -20°C ... +60°C (without condensation)
Vraag direct een offerte aan!
3,5″ – S7-Panel-PLC – flat / no periphery slots onboard
3,5“ TFT (320x240 pixel) |
RS232 with - free ASCII-protocol |
RS485 with - free ASCII-protocol - Modbus RTU - with switchable terminate resistors for RS485 |
Ethernet with - RFC1006, - Send/ Receive via TCP and UDP, - Modbus TCP |
CAN with - protocol compatible to CANopen® - layer2-communication - with switchable terminate resistors for CAN |
Micro-SD-slot - for SD-cards up to 8GByte |
Run/Stop-switch |
Status LEDs for Power, Battery, Error, Run |
Optional configuration: (optional) - Profibus DP-Master - Profibus DP-Slave - with switchable teminate resistors for Profibus |
Omschrijving |
Bestelnummer |
3,5″-Panel-PLC with integrated CPU-V | PC350V-0-03 |
3,5″-Panel-PLC with integrated Profibus DP V0 Master and CPU-V | PC350V-DPM-03 |
3,5″-Panel-PLC with integrated Profibus DP V0 Slave and CPU-V | PC350V-DPS-03 |
3,5″-Panel-PLC with integrated CPU-P | PC350P-0-03 |
3,5″-Panel-PLC with integrated Profibus DP V0 Master and CPU-P | PC350P-DPM-03 |
3,5″-Panel-PLC with integrated Profibus DP V0 Slave and CPU-V | PC350P-DPS-03 |
