OPC UA Server & MQTT Publisher Gateway for Modbus TCP Controllers
OPC UA Server & MQTT Publisher Gateway for Modbus TCP Controllers
Please contact us for up-to-date delivery information.

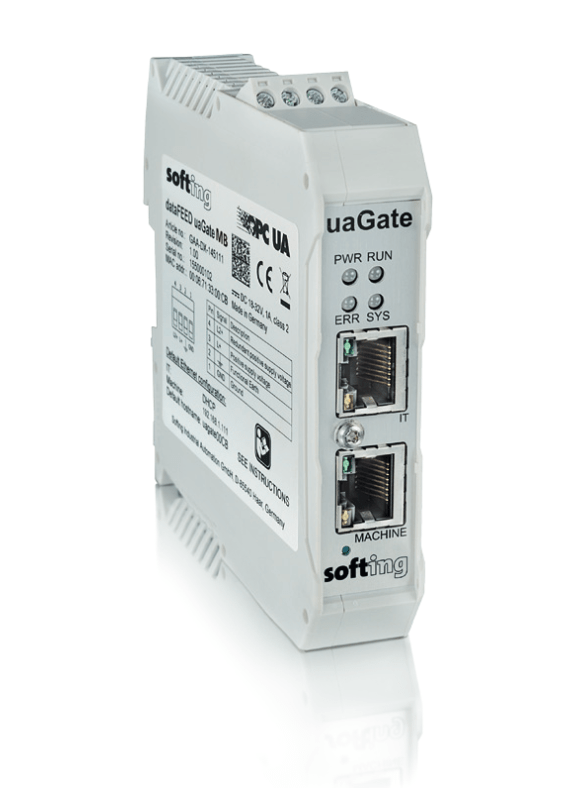

Contact UsuaGate MB is a gateway for Modbus TCP controllers. The gateway has an integrated OPC UA server for simple and secure data connection of new and existing systems to higher-level management systems, such as ERP, MES or SCADA systems.
In addition, uaGate MB also offers MQTT Publisher functionality, enabling direct integration of PLC data into private or public IoT cloud applications on the IT side. The generic MQTT implementation supports the use of a large number of different cloud providers. Similar to the OPC UA standard, MQTT also supports various security mechanisms such as encrypted connections, certificates and user authentication, thus contributing to a high level of data security.
With this functionality, uaGate MB is a compact, secure, future-oriented and proven gateway for data integration.
- Read and write access to Modbus controllers
- Integration of higher-level management systems using integrated OPC UA Server
- Easy setup of OPC UA Server requiring only a few steps for accessing data in Modbus PLCs
- Web-based interface for gateway configuration
- Physically separated interfaces and separate configuration rights for OT and IT networks preventing intrusions
- Supporting security standards as SSL/TLS and X.509 certificates
- OPC UA compliant data encryption and user authentification
- Security supported for MQTT communication with private and public clouds
| Processor | Altera Cyclone V SoC with Dual-core ARM Cortex-A9 |
| Connectors | 2 x IEEE 802.3 100BASE-TX/10BASE-T (independent interfaces) |
| Status LEDs | PWR (power supply), RUN (running), ERR (error), SYS (configuration) |
| Dimensions (H x W x D) | 100 mm x 22.5 mm x 105 mm |
| Power Supply | 18 VDC ... 32 VDC, SELV/PELV supply mandatory Typically 200 mA, maximum 1 A at switch-on |
| Operating Temperature, Horizontal DIN Rail Installation | -40 °C ... 50 °C (0 mm minimum distance) |
| -40 °C ... 55 °C (22.5 mm minimum distance) | |
| Operating Temperature, Vertical DIN Rail Installation | -40 °C ... 35 °C (0 mm minimum distance) |
| -40 °C ... 40 °C (22.5 mm minimum distance) | |
| Storage Temperature | -40 °C ... 85 °C |
| Relative Humidity | 10 % ... 90 %, non-condensing |
| Weight | About 0.2 kg |
| Mounting | DIN Rail (35 mm) |
| Protection Class | IP20 |
| Protocols | Modbus TCP, OPC UA (Server, 20,000 items in total), MQTT (Publisher, up to 1,000 topics) |
| Certifications | CE, FCC, RoHS |
Description |
Order number |
| uaGate MB | GAA-YE-145133 |
| How to configure uaGate MB for OPC UA | Versie: 220201_200 |
| dataFEED Gateways | Manual | Versie: 220715 |
| uaGate MB | Datasheet | Versie: 171101_100 |
| uaGate MB | Quick Start Guide | Versie: V1.72 |
