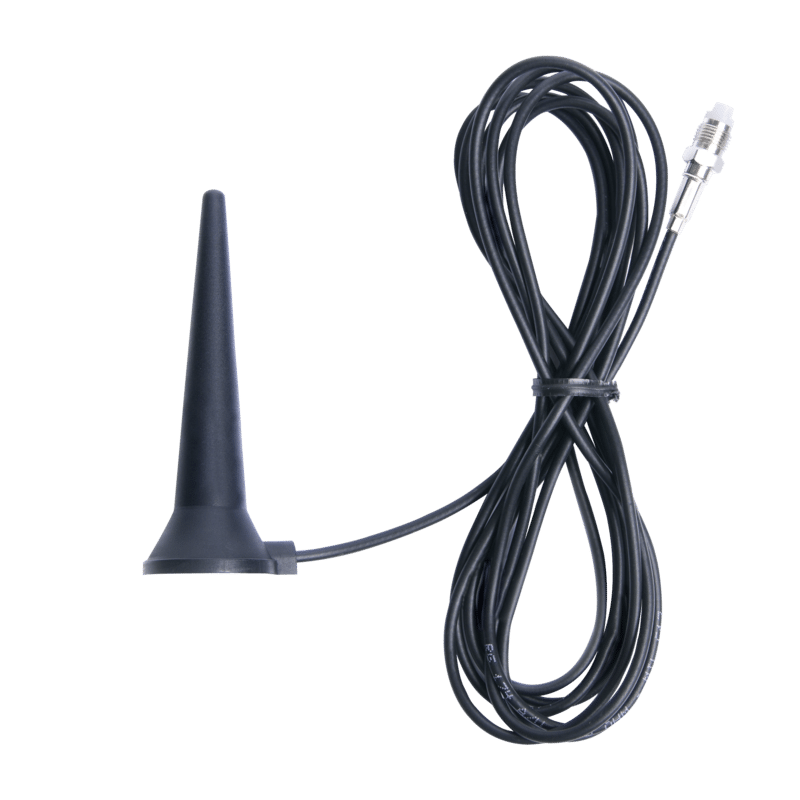

Magnetic base quadband antenna for REX 300, GSM/UMTS, 2 dBi, 2.5 m cable, FME female connector
Magnetic base quadband antenna for REX 300, GSM/UMTS, 2 dBi, 2.5 m cable, FME female connector
- Gain 2 dBi
- 2,5 m cable length
- FME female connector
Vraag direct een offerte aan!
Magnetic base quadband antenna for REX 300, GSM/UMTS, 2 dBi, 2.5 m cable, FME female connector
Direct leverbaar!
| General information | |
| Scope of delivery | Magnetic base quadband antenna, incl. cable |
| Weight | 65 g |
| Ambient temperature | -40° ... +80° |
| Radio networks | GSM Europa/USA | DCS-PCS Europa/USA | UMTS |
| Frequency range | 824 – 960 MHz | 1710 – 1990 MHz | 1920 – 1990 MHz (uplink tr.) | 2110 – 2170 MHz (downlink ric.) | 1900 – 1920 MHz (uplink tr.) | 2010 – 2025 MHz (downlink ric.) |
| Impedance | 50 Ω |
| Max. input power | 20 W |
| VSWR | < 1.6 | < 1.5 | < 2.0 |
| Polarization | Vertical |
| Radiation pattern | Omni-directional |
| Gain | 2.14 dBi |
| Cable length | 2,5 m, RG 174 |
| Connector type | FME (f) |
Omschrijving |
Bestelnummer |
| Magnetic base quadband antenna, GSM/UMTS, 2 dBi, 2.5 m cable, FME female connector | 700-751-ANT12 |
vraag meer informatie over toepassingen aan via ons contactformulier.
