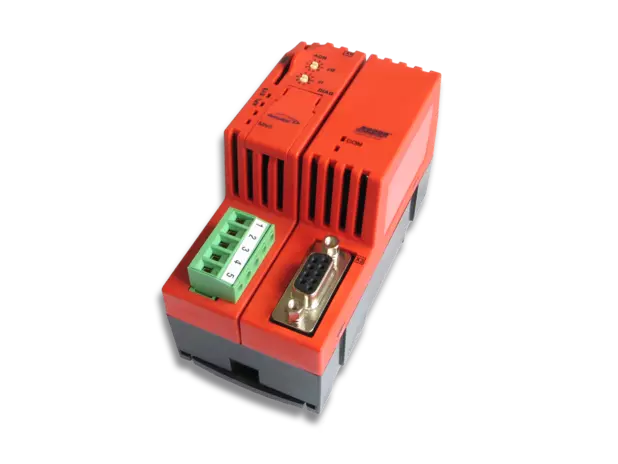

Gateway DeviceNet to PROFIBUS-DP

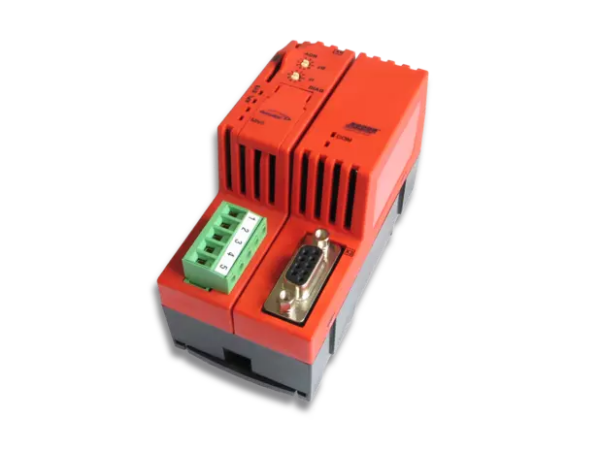

Gateway DeviceNet to PROFIBUS-DP - Image 2

Gateway DeviceNet to PROFIBUS-DP

netTAP 100 connects to communication networks and acts as a Gateway for sophisticated conversions between one Real-Time Ethernet protocol (2-port) and one fieldbus protocol or one serial automation protocol as well as between two fieldbus protocols as well as between one fieldbus protocol and one serial automation protocol. Licensed Master functionality is unrestricted.

A memory card slot allows the user to save firmware and configuration data on a removable card. In case of problems, the user can continue operation within a few seconds by removing the memory card from the netTAP 100 and connecting it to a spare unit.

Apart from standard protocols, netTAP 100 supports the programming of special serial protocols with the Lua-based scripting language netSCRIPT. A full-featured development environment (included within the delivery) allows the comfortable and rapid programming of any proprietary serial protocol as well as the I/O data preprocessing and further processing during the conversion into the secondary I/O field protocol.

NT 100-DN-DP supports the following protocols:

  • DeviceNet Slave
  • PROFIBUS DP Slave
  • DeviceNet Master
  • PROFIBUS DP Master
Request more information
  • Integrates a subordinate DeviceNet network trunk in PROFIBUS, and vice versa
  • Master for up to 63 DeviceNet Slaves or 125 PROFIBUS Slaves
  • Shortest I/O data conversion period of less than 10 ms
  • Device replacement in seconds via memory card based loading
  • Loadable firmware for flexible use of other conversions
  • With USB diagnostic and configuration port
Communication controllerCommunication controllernetX 100
Integrated MemoryRAM8 MB SDRAM
FLASH4 MB serial Flash
Memory cardType and size SD or MMC card, max. 2 GByte
Power supplySupply voltage24 V ± 6 V DC
Current consumption at 24 V (typically)Maximum Current at 24 V (typically) 130 mA
Typical power consumption3,2W
Requirement to the power supplyFor UL conform usageDevice shall be supplied by an isolated voltage source
Communication interface 1Communication interfaceDeviceNet
Interface typeISO 11898, optically isolated
Connector typeCOMBICON, 5-pin
Communication interface 2Communication interfacePROFIBUS DP
Interface typeRS-485, galvanically isolated
Connector typeD-Sub, socket, 9-pin
Permitted ambient conditionsAmbient temperature (operation)0 … +60 °C
Relative humidity (operation)no condensation allowed
DeviceDimensions (L x W x H)100 x 52 x 70 mm (without connector)
Weightappr. 150 g
Degree of protectionIP 20
Mounting typeon DIN rail EN 60715
ConfigurationConfiguration softwareSYCON.net

Description

Order number
NT 100-DN-DP, Gateway DeviceNet to PROFIBUS DP1717.180
NXLIC-MASTER - Master license8211.000
